DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting

Place of Origin China
Brand Name LS
Certification CE, RoHS , UL , SAA, TUV , FCC
Model Number LS-WP-0099
Minimum Order Quantity 1pcs
Price $32/pcs for 1-100pcs
Packaging Details 1pcs by carton, Packing size: 500x480x620mm
Delivery Time 5-8 working days
Payment Terms L/C, T/T
Supply Ability 10000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LED Wall Pack Light Watts 40w/60w/100w/120w
Light Efficacy 100LM/W CCT 3000K/4000K/5000K/5700K
LED Chip 3030 Input Voltage 100-277V AC
Housing Die-casting Aluminum Certificate UL, CUL, DLC, ETL, LM80
High Light

aluminium housing for led lights

,

aluminum led housing

,

aluminum led profile housing

Leave a Message
Product Description





DLC 40W 60W 100W 120W Exterior Led Wall Pack Lamp Waterproof Outdoor Lighting





Specification:



Model LF-BH-WP05-XX01 LF-BH-WP04-XX01 LF-BH-WP02-XX01 LF-BH-WP01-XX01
Power 40W 60W 100W 120W
Output Lumens 4000Lm 6000Lm 10000Lm 12000Lm
Light Efficacy 100Lm/W
CCT 3000K/4000K/5000K/5700K
LED Chip 3030
Power Factor ﹥0.9
Input Voltage 100-277V AC
THD ﹤20%
Weight 3.1Kg 4.0Kg 4.8Kg 7.9Kg
Dimension 360*235*187 mm 360*235*187 mm 360*235*187 mm 465*230*244 mm
Housing Die-casting Aluminum
Lens PC
Mounting Recessed Outlet or to Surface
Operation Temperature -35°C~55°C
Finish Brown
IP rated IP65
Certificate UL, cUL, DLC, ETL, LM80
Material RoHS Compliant
LED Driver Waterproof
LED Chip LM80 rated to 50,000 Hours





Features:



1)DLC listed (48W, 60W, 80W, 100W, 120W)


2)ETL, cETL listed


3)High lumens 120lm/w


4)IP65 wet location


5)Wall mounted


6)Photocell, dimmable optional


7)5 years warranty

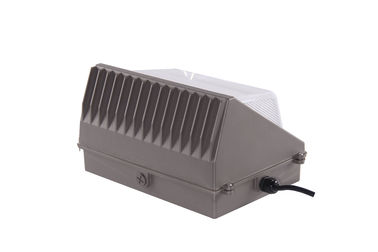

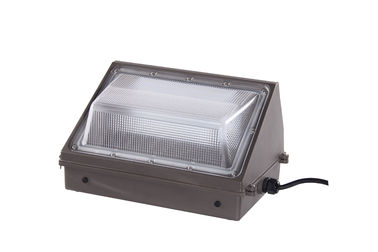

Product Pictures:



DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 0

DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 1

DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 2

DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 3




Installation:



DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 4

DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 5





Advantage



1. 3030 LED Chip ensures the light gentle, well-distributed and of high brightness;
2.AC85-265V MEANWELL driver input voltage allows the light works well in all condition;
3.Heatsink of cold forging processing ensures good dissipation performance;
4.Lamp body made of anodized aluminum 1070 means the good anti-corrosion,intensity and suitable for even a bad climate;
7.Stable Electro Magnetic Compatibility;
8.Beam angle: 30/60/90 degree





Application:



DLC 40W 60W 100W 120W Exterior LED Wall Pack Lamp Waterproof Outdoor Lighting 6





Why Us:



1. High quality:
As a company in LED field for over 11 years with certificates like ISO9001:2008, ISO14001, CE, RoHS, SAA, TUV, SGS, etc., Lightsupports implements the strict procedures in daily production. We only select the best quality raw material for our product such as CREE, BRIDGELUX, EPISTAR LED chips, MEANWELL driver, RUBYCON capacitor, etc. We use the newest heat dissipation technology such as active cooling, cooling fan, and fins heat sink to ensure stability and durability of the products. Lightsupports always implement its production strictly abide by the strict quality control system. And every product has to go through 24 hours aging test before shipment to ensure high stability.


2. Most Competitive Price:
We believe future development is based on any possible cooperation today, no matter how big the order is. Therefore, we control the profit at a very limited level. We believe the future development lies in the current cooperation. Our target is to produce high quality goods with very limited profit margin for the mutual benefits of both of us.


3. Fast delivery:
Lead time only 3-5 working days for sample order after payment confirmed, 15-20 working days for bulk orders.


4. 100% Satisfaction Service:
Any question regarding products raised by customers will be replied within 24 hours. For any after-sales complaint, we absolutely shoulders the responsibility to solve it based on customer-oriented solution; this is why our business is skyrocketing.


5. Continuous R&D Investment:
To keep advantages in LED manufacturing, we continuously invests10 to15% of its profit on R&D of core technologies like heat dissipation, driver, optics, etc. And all the 15 engineers has education background above bachelor, further education mechanism is another driving force of lightsupports development.


6. OEM&ODM service available.





Quality Warranty:

1. We offer 5 years warranty for LED lights.


2. All products are gone through strict test by our experienced QC before shipment. For any after-sales compliant, lightsupports shoulders the responsibility to solve it properly till customer is satisfied.


3. Quality guarantee is based on storing, installing, operating and maintaining correctly in the normal operation conditions. It is not included in our maintaining range when installing inappropriately, breaking the operating rules, and leading to the products damaging. But lightsupports will try every effort to help customers under these circumstances.


4. lightsupports will maintain the right to either repair, parts replacing, or products exchange during the quality warranty period.
