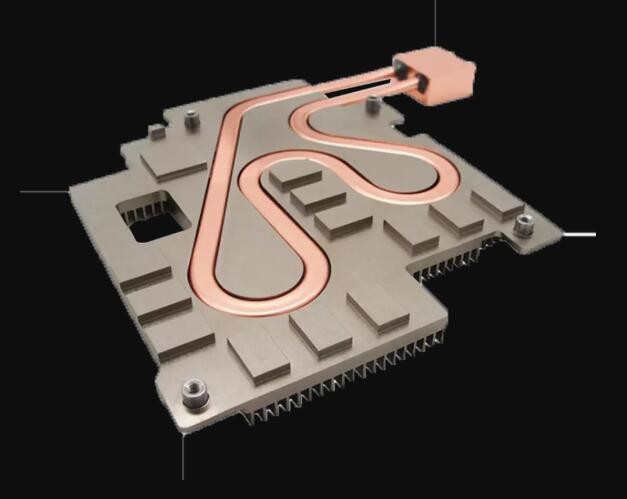

SGS Copper Pipe Heat Sink Soldering Cooling Disc For Projector / Computer

Place of Origin Guangdong, Mainland China
Brand Name LF
Certification ISO9001:2008
Model Number LF-ZHY07121
Minimum Order Quantity 100 PCS
Price Negotiable
Packaging Details Plastic Tray Or Customized
Delivery Time MOQ 1 Week, 5000pcs 4 Weeks
Payment Terms T/T, Western Union, Western Union, MoneyGram, L/C, D/P, D/A
Supply Ability 30,000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Cooling Plate For Computer, Medical, Projector Overall Dimension 450*450*3.5 Mm
Heat Tubes Diamater 10 Mm Finishing Nickle Plating
Part Weight 330 Gram Tube Quantity 5 Pcs
Place Of Original Dongguan, China
High Light

copper heat sink

,

pin fin heat sink

Leave a Message
Product Description

SGS Copper Pipe Heatsink Water Cooling flat Heat pipe soldering heat sink for Projector



Quick Details:



Precision Copper Pipe cooling plate

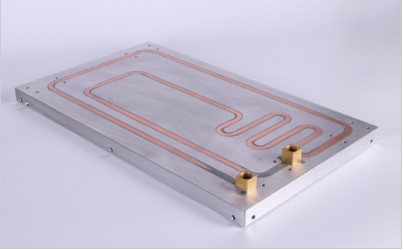

Large Image:  Aluminum plate liquid cooling with Copper Pipe

Materials: Pure Copper C1100 Strips, Purity over 99.5%

Depend on customer's requirements





Description:

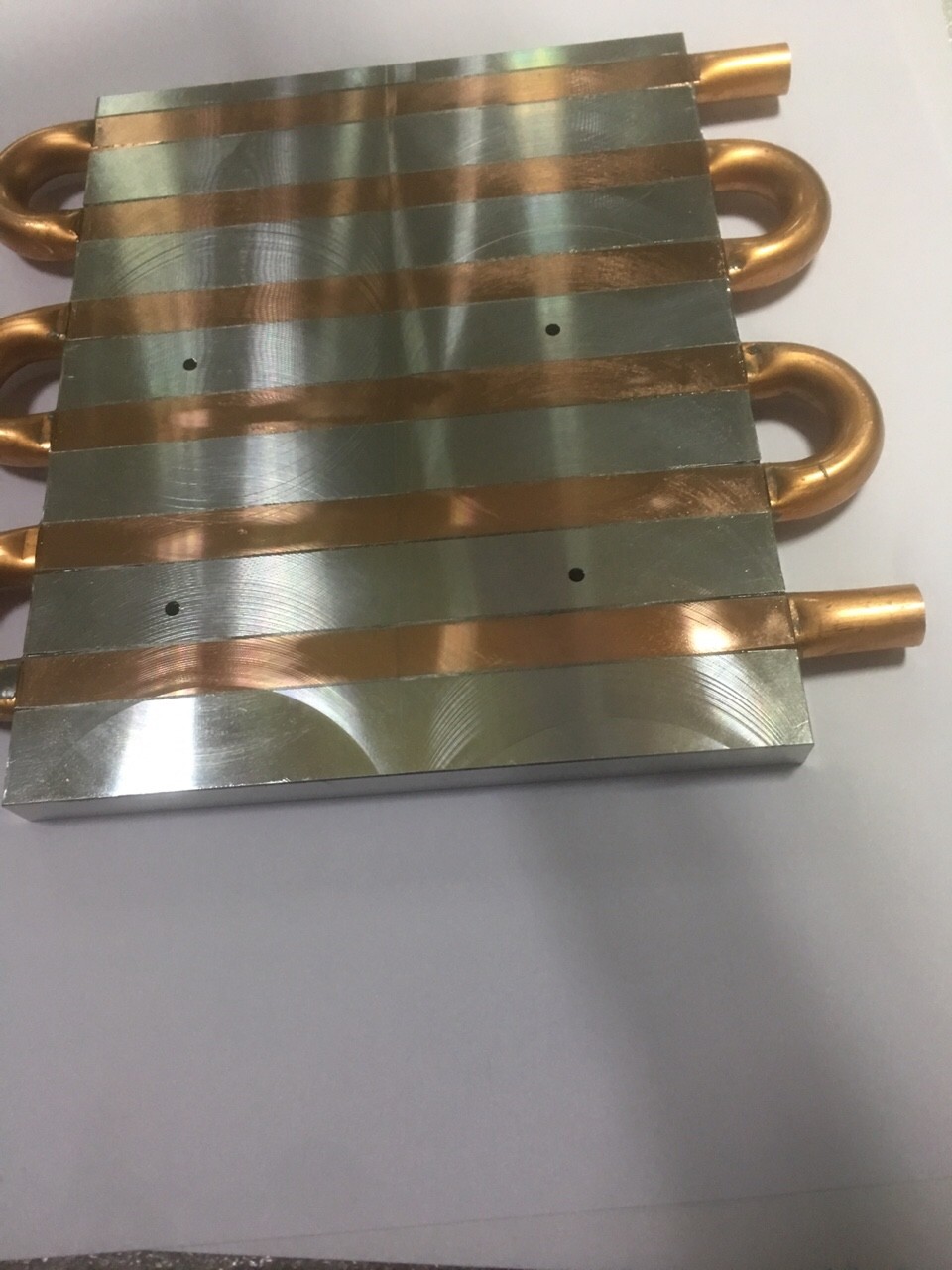

Large Image:  Aluminum Fin Heat Sink with Copper Pipe

            150W Big Power Copper Pipe Heat Sink

            Copper Pipe Heat Sink for Projector

            Heat Sink With Copper Pipe For Projector





Application:  Projector, Computer, Server



Full-buried-tube technique:

The filler is a type of highly conductive epoxy resin which is imported from the US. When the temperature difference between two sides of a device is not critical, the cold plates can be applied to either just one side or both sides of the device. Since the copper tube thickness is not affected by any secondary machining and the application safety is ensured due to the protection of the filler, this technique is especially suitable for cold plate applications which use refrigerant as the cooling medium.



Specification:



Overall Dimension Fins: L80*W31
Aluminum Fin Thickness 25 mm
Fin Quantity Per Row 26 pcs
Aluminum Block Size 450*450*35 mm
Copper Tube 8mm in Dia.
Tube Quantity 3 pcs
Part Weight 330Gram
Material

Pure Copper C1100 Strips, Purity over 99.5%  (Standard: JIS H3250-2006);  Pure Aluminum Board A1060  Purity Over 99.6% .(Standard: GB/T3880-2006).

(Little Impurity brings very good Electrical and Heat Conduction; Excellent Performance In Corrosion Resistant as well.)







Copper processing:



Copper Tubes:

SGS Copper Pipe Heat Sink Soldering Cooling Disc For Projector / Computer 0



Automatic Tube Forming Machining



SGS Copper Pipe Heat Sink Soldering Cooling Disc For Projector / Computer 1



Overflow Welding/Drying Machine





Processing Technic:



1. Copper Fins: Progressive Die Stamping

2. Aluminum Board: Extrusion+ CNC Machining

3. Copper Tube Forming : Automatic Tube Bending+ Burn into Tip Ends.

4. Aluminum Board and Enclosure Nickle Plated,  Copper Fin Passivate (Insulation,

   Oxidation and Corrosion Resistance).

5. Assembly: Automatic Fin Wearing/Assembly, then Fixed by Overflow Soldering  and

   Screw/Rivet Combination.

6. Quality Check

7. Packing





Advantages:



1. Professional Research and Design Team,  Strong & Automatic Equipments: Progressive Stamping, Automatic Tube Bending Machine, Automatic Fin Wearing Machining

2.  Strict Quality Control in Each Process and Finish Product Quality Control

3. Short Delivery Lead Time: 15-30 Days

4. Optional For OEM or ODM

5. Comprehensive After-Sale Service, Quick Responses For Daily Communication
