12W 83diameter COB LEDs Tridonic aluminum gray DIRECT REPLACEMENT LED DOWN LIGHT

Place of Origin China
Brand Name LF
Certification CE
Model Number LF-LDL15W-R1
Minimum Order Quantity 50
Price UD$ 13.6~14 per piece
Delivery Time 7~15 working days
Payment Terms Western Union, T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PRODUCT NAME LED DOWN LIGHT Material Aluminum+PC Reflector And Cover
Size Φ83*78mm Light Source Citizen COB LEDs
IP Rating 44 Input Voltage AC220~240V 50/60Hz
Life Span 50000hours Beam Angle 120 Degrees
CRI >80 Color Temperature 3000K (Warm), 4000K (Neutral), 6000K (Cool)
Lumen 1100~1300lm Power 12W
Warranty 3~5 Years Delivery Time 7~20 Days
APPLICATIONS Office, Residential, Indoor Lighting, Shop, Hotel
High Light

Aluminum Light Housing

,

extruded aluminum led housing

,

die cast aluminum led housing

Leave a Message
Product Description

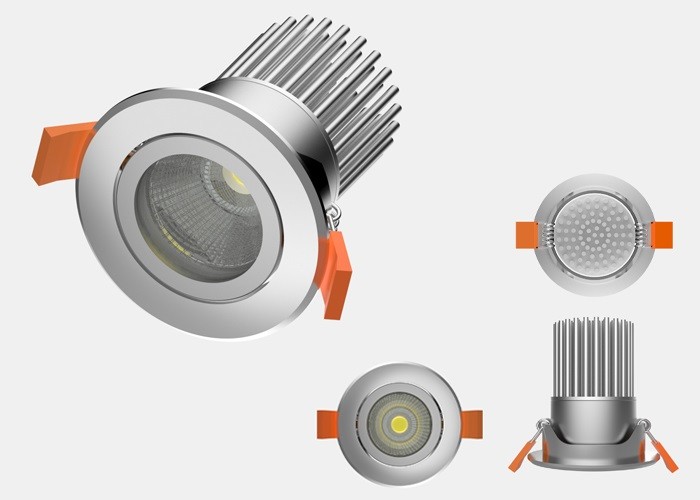

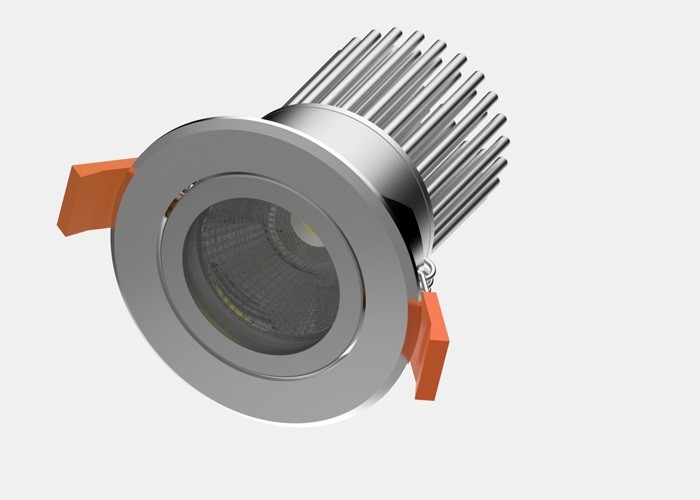

12W 83 diameter COB LEDs Tridonic aluminum gray DIRECT REPLACEMENT LED DOWN LIGHT



1.Citizen COB LEDs and Tridonic Driver

2.Solid State: High Shock / Vibration Resistant (No Glass Breakage).

3.Instant, Full-Strength Lightup – No Buzzing Or Flickering.

4.Environment-Friendly: No Harmful Mercury, No UltraViolet or InfraRed Radiation.

5.No RFI or EMI.

Product Name: 15W LED Down Light

   12W LED

  Down Light

   15W LED

 Down Light

   12W LED

   Down Light

Part Number: LF-LDL15W-S1 LF-LDL12W-S2 LF-LDL15W-R1 LF-LDL12W-R2
Input Voltage: AC 220~240V 50/60Hz
Power Consumption: 15W 12W 15W 12W
Light Source: Citizen COB LEDs
Driver: Tridonic
Luminous Flux: 1100lm~1300lm 850lm~950lm 1100lm~1300lm 850lm~950lm
Luminous Intensity: 1915cd~9170cd 1155cd~6860cd 1915cd~9815cd 1155cd~6860cd
Color Temperature: 2700K(Warm), 3000K (Warm), 4000K (Neutral)
CRI: 80Ra, 85Ra, 90Ra, 95Ra (Optional)
Beam Angle: 15, 25, 38, 60 Degrees (Optional)
UGR: <19
Dimming Mode: Non-dimmable (On-Off, Phase, Triac, 1-10V, DALI dimmable are available if required)
IP Grade: IP20
Construction: Aluminum; PC Reflector and Cover
Cut-out: 75*75mm Φ75mm
Physical Dimensions: 83*83*78mm 83*83*68mm Φ83*78mm Φ83*62mm
Replacement: 50W Halogen Lamp 35W Halogen Lamp 50W Halogen Lamp 35W Halogen Lamp

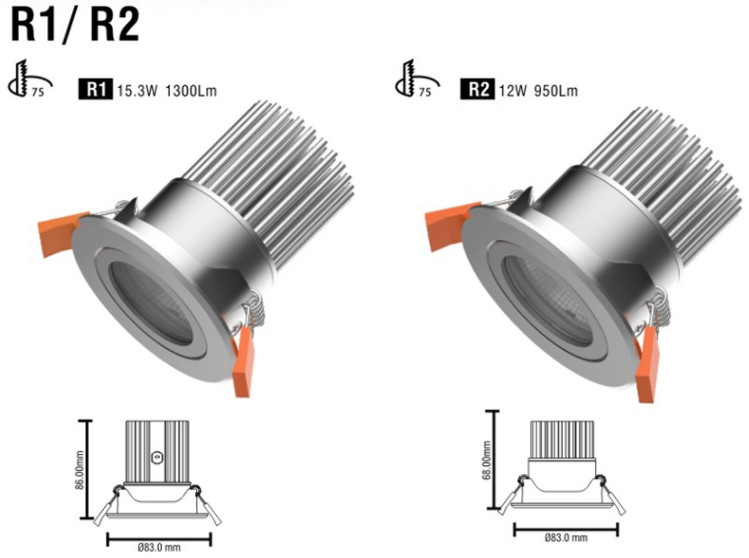

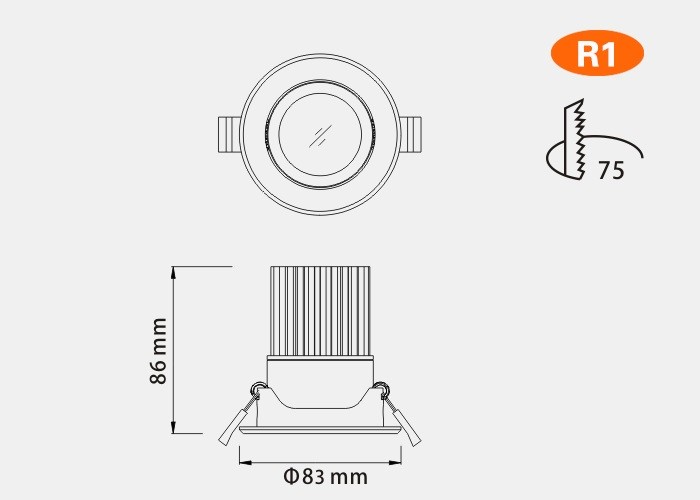

PRODUCT DIMENSION



12W 83diameter COB LEDs Tridonic aluminum gray DIRECT REPLACEMENT LED DOWN LIGHT 0



12W 83diameter COB LEDs Tridonic aluminum gray DIRECT REPLACEMENT LED DOWN LIGHT 1
