Product Details:

Place of Origin: China
Brand Name: LF
Certification: CE
Model Number: LF-LDL56W-P8

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: US$ 51~53per piece
Packaging Details: small box for each, with outer carton
Delivery Time: 7~15 working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Material: Aluminum+PC Diffuser Size: Φ235*128mm
Light Source: Citizen COB LEDs IP Rating: 44
Input Voltage: AC220~240V 50/60Hz Life Span: 50000hours
Beam Angle: 50° CRI: >80
Color Temperature: 3000K (Warm), 4000K (Neutral), 6000K (Cool) Lumen: 5200lm~5500lm
Power: 56W Warranty: 3~5 Years
Delivery Time: 7~20 Days Applications: Office, Residential, Indoor Lighting, Shop, Hotel
Type: Commercial Light/Residential Light/Ceiling Light/Down Light
High Light:

residential recessed lighting

,

residential led downlights

Product Description

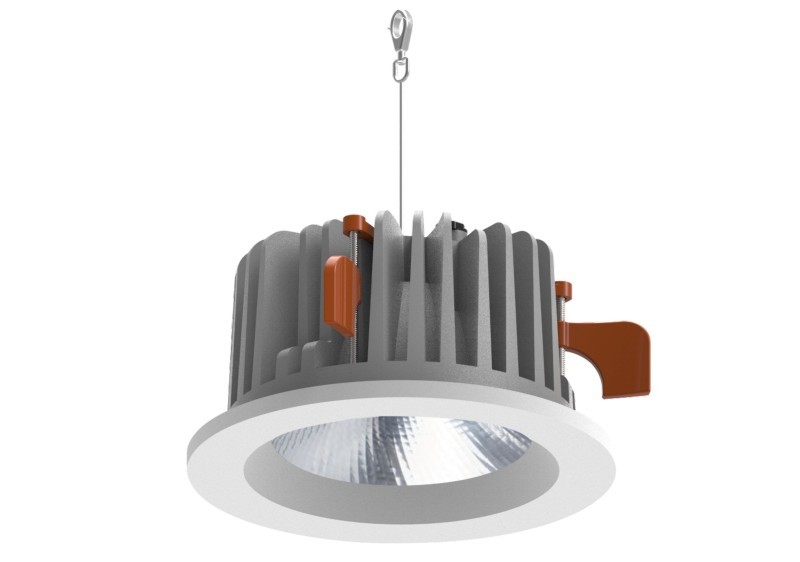

Elegant White Residential LED Lighting Tridonic / Driver High Bright

P Series LED DOWN LIGHT Self-designed 11W/16W/21W/42W/56W

  • Elegant design in appearance with simplicity
  • Flexible mounting clips accommodates to 1mm to 35mm
  • Thickness avoids damage to ceiling during installation
  • Better heat disspation
  • Optional for Dimmable/Non-dimmable
  • 5-year-warranty

Elegant White Residential LED Lighting Tridonic /  Driver High Bright 0

Product Name: 11W LED Down Light 16W LED Down Light 21W LED Down Light 42W LED Down Light 56W LED Down Light
Part Number: LF-LDL11W-P3 LF-LDL16W-P4 LF-LDL21W-P5 LF-LDL42W-P6 LF-LDL56W-P8
Input Voltage: AC 220~240V 50/60Hz
Power Consumption: 11W 16W 21W 42W 56W
Light Source: Citizen COB LEDs
Driver:   Tridonic
Luminous Flux: 800lm~1050lm 1200lm~1400lm 1800lm~2100lm 3800lm~4050lm 5200lm~5500lm
Color Temperature: 2700K(Warm), 3000K (Warm), 4000K (Neutral)
CRI: 80Ra, 85Ra, 90Ra, 95Ra (Optional)
Beam Angle: 50 Degrees
UGR: <19
Dimming Mode: Non-dimmable (On-Off, Phase, Triac, 1-10V, DALI dimmable are available if required)
IP Grade: IP66
Construction: Aluminum; Aluminum Reflector and Toughened Glass
Cut-out: Φ95mm Φ110mm Φ130mm Φ175mm Φ205mm
Physical Dimensions: Φ110*65mm Φ135*72mm Φ160*72mm Φ195*108mm Φ235*128mm

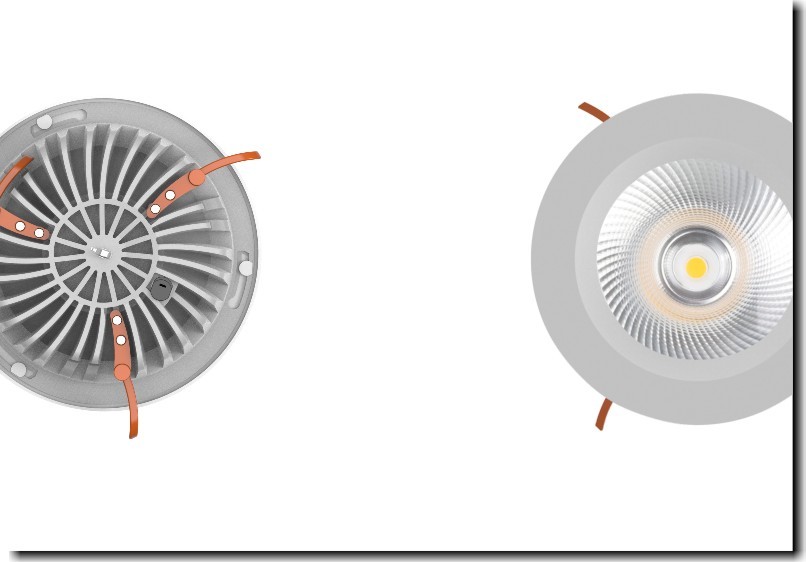

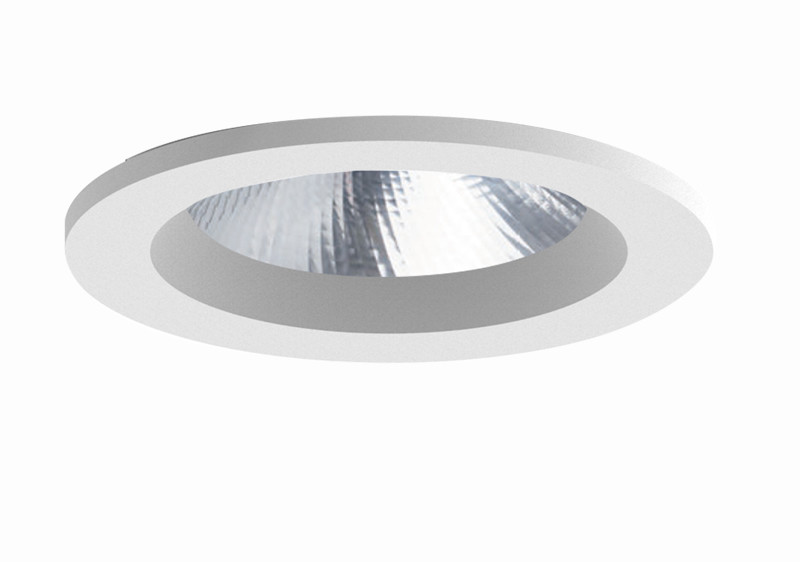

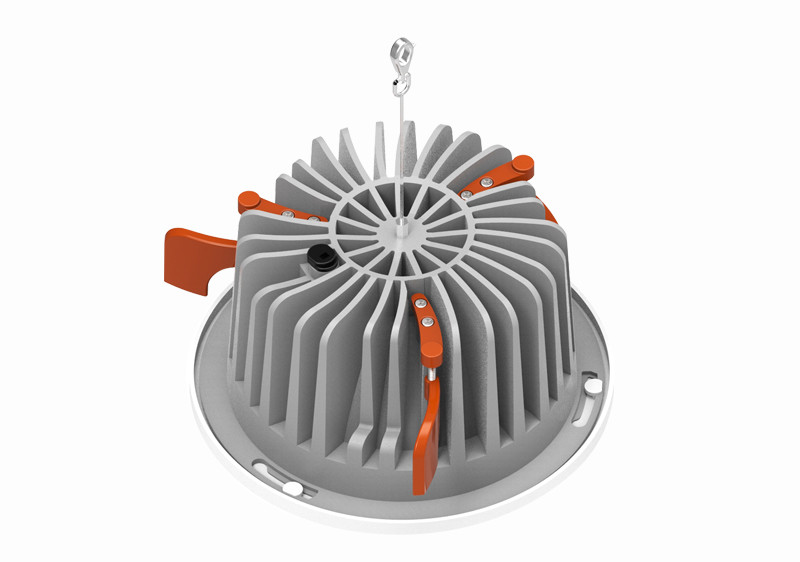

Product Dimension

Elegant White Residential LED Lighting Tridonic /  Driver High Bright 1

Elegant White Residential LED Lighting Tridonic /  Driver High Bright 2



Elegant White Residential LED Lighting Tridonic /  Driver High Bright 3

Elegant White Residential LED Lighting Tridonic /  Driver High Bright 4

Elegant White Residential LED Lighting Tridonic /  Driver High Bright 5





INSTALLATION INSTRUCTIONS



Elegant White Residential LED Lighting Tridonic /  Driver High Bright 6



FAQ



Q1. Can you provide a sample for us?
A: Yes, Of course. Welcome for your sample order to test our products.



Q2. What about the lead time?
A: Normally, 7-12 working days lead time, samples only 3-5 days.



Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, the price can also be negotiable according to your quantity.



Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?
A: Yes, 5 years warranty provided.



Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
