21 W 42 W 56 W Residential LED Lighting / Waterproof SMD LED Downlight

Place of Origin China
Brand Name LIFONG
Certification CE, RoHS
Model Number LF-LDL
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard cartons packing
Delivery Time MOQ 1 Week, 10,000pcs 2 Weeks.
Payment Terms L/C, T/T
Supply Ability 10,000 pieces/Month
Product Details
Watts Available 11W 16W 21W 42W 56W Light Source Samsung LEDs
Driver Driver Beam Angle 80 Degrees
Working Voltage AC 220~240V 50/60Hz(Europe)/AC 100~277V 50/60Hz(worldwide) Material Aluminum; PC Diffuser
Dimming Mode Non-dimmable 11W Size Φ110*65mm
CCT 2700K(Warm), 3000K (Warm), 4000K (Neutral) Warranty 5 Years
High Light

residential track lighting

,

residential led downlights

Leave a Message
Product Description

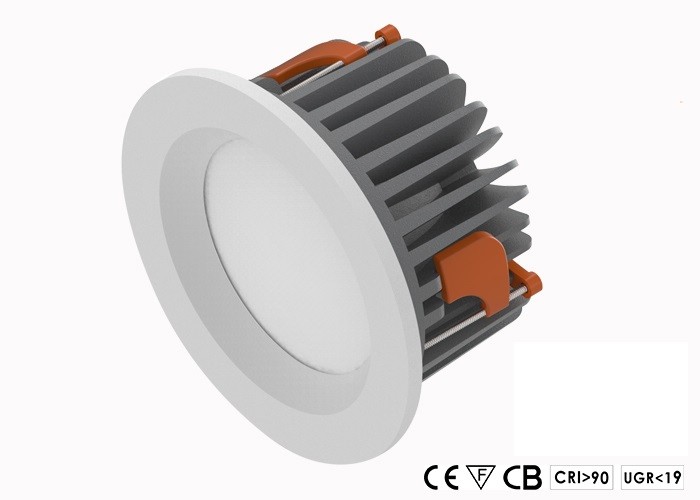

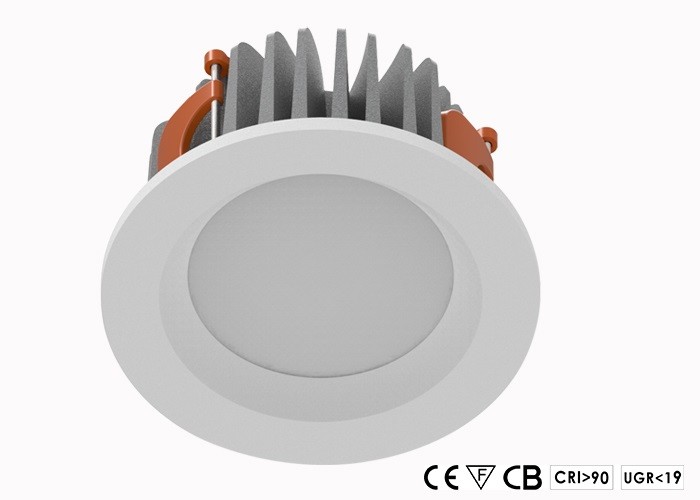

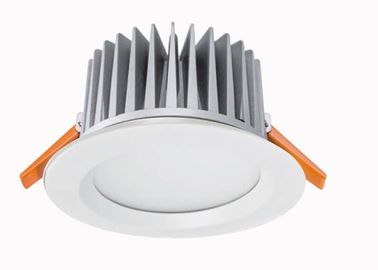

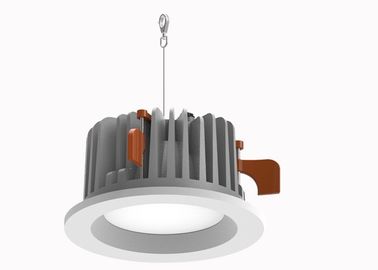

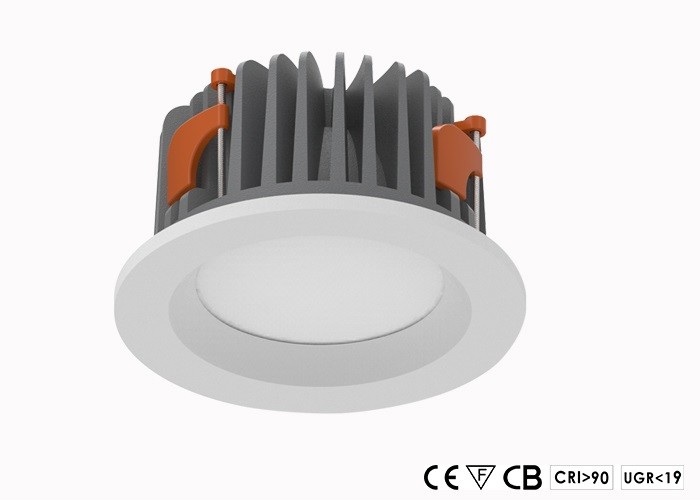

11W 16W 21W 42W 56W Waterproof SMD LED Down Light LED Residential Light



Product Name: 11W LED Down Light 16W LED Down Light 21W LED Down Light 42W LED Down Light 56W LED Down Light
Part Number: LF-LDL11W-C3 LF-LDL16W-C4 LF-LDL21W-C5 LF-LDL42W-C6 LF-LDL56W-C8
Input Voltage: AC 220~240V 50/60Hz
Power Consumption: 11W 16W 21W 42W 56W
Light Source: Samsung LEDs
Driver: Tridonic
Luminous Flux: 800lm~1050lm 1200lm~1400lm 1800lm~2100lm 3900lm~4150lm 5200lm~5500lm
Color Temperature: 2700K(Warm), 3000K (Warm), 4000K (Neutral)
CRI: 80Ra, 85Ra, 90Ra, 95Ra (Optional)
Beam Angle: 80 Degrees
UGR: <19
Dimming Mode: Non-dimmable (On-Off, Phase, Triac, 1-10V, DALI dimmable are available if required)
IP Grade: IP66
Construction: Aluminum; PC Diffuser
Cut-out: Φ95mm Φ110mm Φ130mm Φ175mm Φ205mm
Physical Dimensions: Φ110*65mm Φ135*72mm Φ160*72mm Φ195*108mm Φ235*128mm





Features:



1) 5 years warranty



2) Latest waterproof design with better heat sink.



3) Samsungs SMD LED; Tridonics and s LED Driver.



4) High CRI: 80Ra, 85Ra, 90Ra and 95Ra available.



5) Beam angle: 80 Degrees.



6) Direct replacements of Halogen Lamp.





Product Drawing:



21 W 42 W 56 W Residential LED Lighting / Waterproof SMD LED Downlight 0

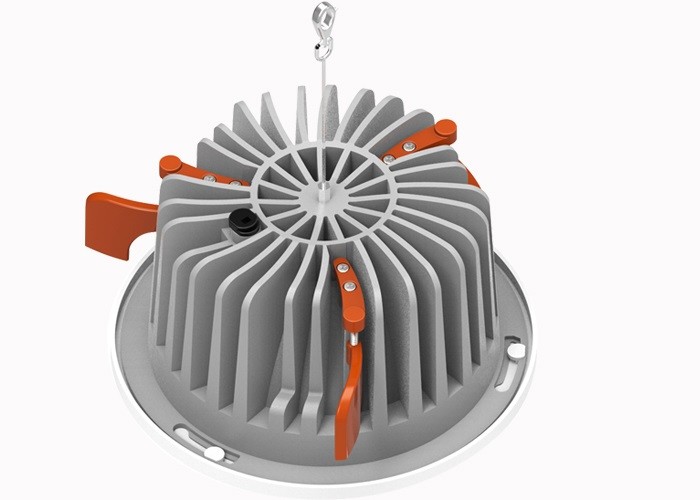

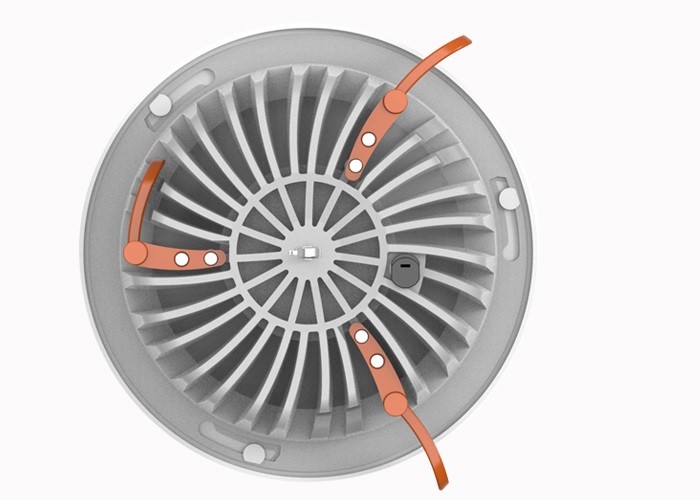

Structure Drawing:



21 W 42 W 56 W Residential LED Lighting / Waterproof SMD LED Downlight 1







Benefits:


1) Major Power Savings Compared to Halogen Lamps.


2) Solid State: High Shock / Vibration Resistant (No Glass Breakage).


3) Instant, Full-Strength Lightup – No Buzzing Or Flickering.


4) Environment-Friendly: No Harmful Mercury, No UltraViolet or InfraRed Radiation.


5) No RFI or EMI.





Application:



21 W 42 W 56 W Residential LED Lighting / Waterproof SMD LED Downlight 2



1) Various retail stores (Clothes store, Furniture shop, Jewelry counter, Watch store).


2) Luxurious hotels, Restaurant, Clubs, KTV, Bar.


3) Exhibit hall, Showroom, Museum.


4) Supermarket, Shopping malls, Corridors.


5) Residential, Bedroom, Bathroom, Dining room, Living room, Foyer, Hallway, Parlour, Lounge.





Quality Warranty Service:



We provide below service for all our customers:

1) Each finished light is fully QC checked before packaging . Any of our lights have 5-Year warranty.

2) Our managing philosophy is Always providing our customers competitive price.

3) Short delivery lead time: Sample one week, production within 1000 units 2 weeks.

4) No MOQ limit.

5) Strong fasten structure design and protective anti-corrorsion surface treatment make our products have very good performance in all kinds of wild weather.
