Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm

  • Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm
  • Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm
  • Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm
  • Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm
Place of Origin China
Brand Name LF
Model Number LS-FM-997
Minimum Order Quantity 1000
Price $5
Packaging Details Carton Box/Customized
Delivery Time 5-8 working days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 100,000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Standard Extruded Aluminum Heat Sink 150(W)*45(H)mm Material AL 6063 T5
Grade 6000 Series Temper T3-T8
Application Heat Sink Alloy Or Not Is Alloy
Processing Service Bending, Declining, Welding, Punching, Cutting, CNC Machining Pitch 4.7 Mm
Weight 8.52 Kgs/m Surface Treatment (Black) Anodising
Highlight

commercial outside lights

,

commercial grade outdoor lights
Leave a Message
Product Description
Product Description
Product Name
Standard extruded aluminum heat sink 150(W)*45(H)mm
Material
AL 6063 T5
Detailed Size

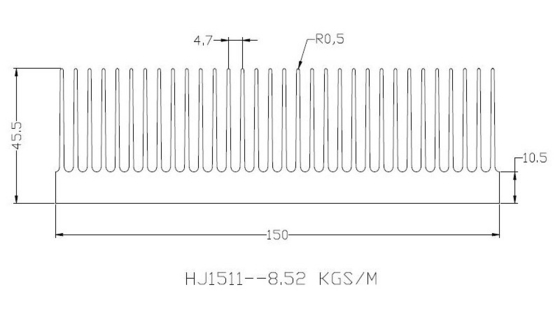

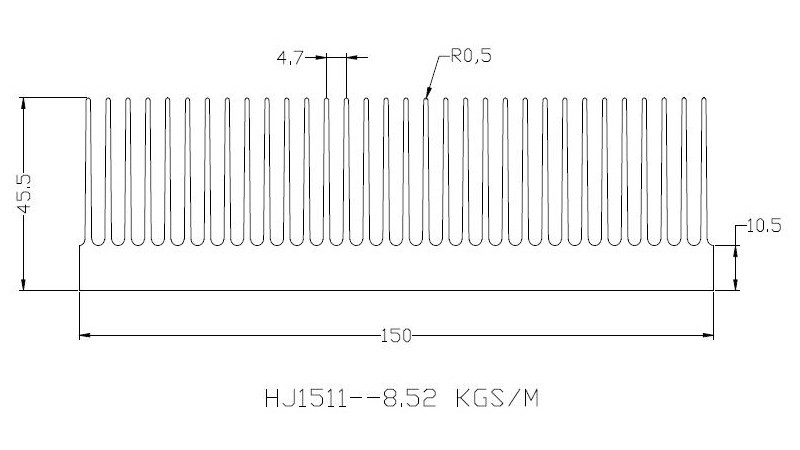

As the below drawing,or as per custom design
Max Aspect Ratio( Fin Height / Fin Gap)
More than 20 times aspect ratio heatsink can be extruded by 800 Tons--6000 Tons extruding machine by most advanced technology
Max Width
Ultra wide extruded heatsink can be made by our unique friction welding technology
Standard Mold Qty
30,000+ sets standard molds in stock for your option,saving your R&D cost
Sample Service
Samples with differernt sizes are availabe for prototypes test within 1 week
Production Process
Profiles Extruding---Cutting---CNC Machining(Milling, Drilling,Tapping)---Deburring--- Cleaning--- Inspecting--Packing
Surface Treatment
Degreasing,(Black) Anodizing,Sand Blasting,Painting,Chromating and Laser marking.
Reference Standard
GB/T 3190-2008,GB/T 14846-2008,ISO 2768
Experience
More than 20 years professional manufacturing experience

Application
LED Lighting,Inverter,Welding Machine,Communication Device,Power Supply Equipment,Electronic Industry,Thermoelectric Coolers/Generator,IGBT/UPS Cooling Systems,etc.
Product Paramenters

Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 0





Main Categories
Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 1
Extruded Heatsink
Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 2
Bonded Fin Heatsink
Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 3
Liquid Cooling Plate
Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 4
Heat Pipe Heatsink
Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 5
Cold Forging Heatsink
Flexible cutting length high power heat sink extrusion 150(W)*45(H)mm 6
CNC Machined Part
