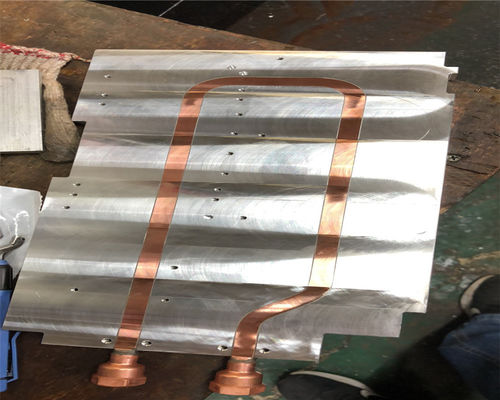

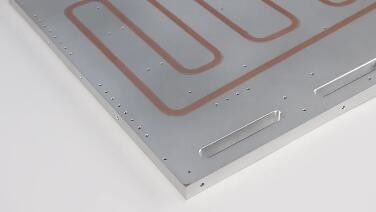

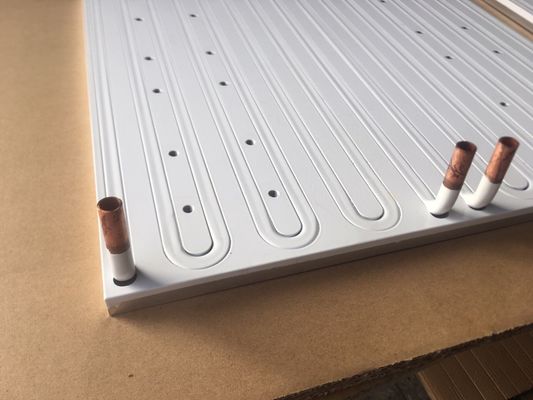

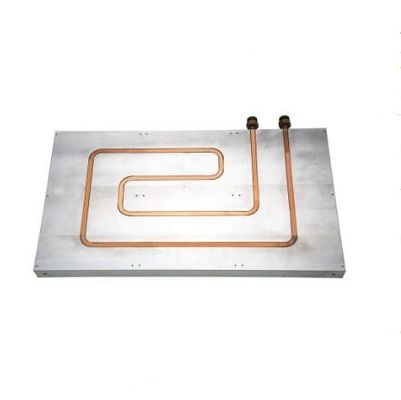

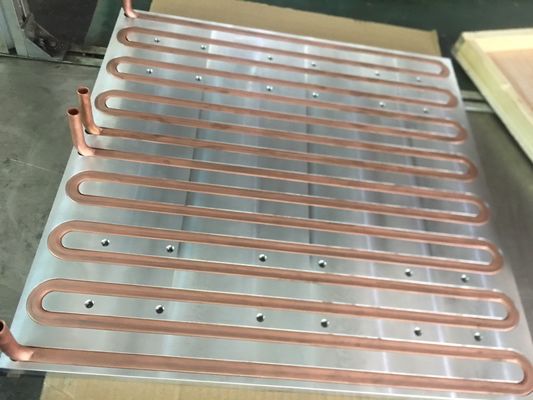

395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink

  • 395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink
  • 395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink
  • 395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink
  • 395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink
  • 395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink
Place of Origin China
Brand Name LF
Certification GB/T 32610-2016
Model Number LF-M1
Minimum Order Quantity 50000pcs
Price USD0.17
Packaging Details 50pcs per box，40boxes in one carton
Delivery Time 1-3days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 300000 Pieces/per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Name Liquid Cold Plate Raw Material Aluminum 6063 , 6061 , Copper Pipe
Color Siliver/white Finishing Passivation / Powder Coating
Packing 5 Pcs/box L/T 30 Days
Customized Yes MOQ 50000pcs
Highlight

0.4mm water cooled heat sink

,

99.5% water cooled heat sink

,

LF aluminum heat sink
Leave a Message
Product Description

395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled



Quick Details:
Aluminum plate and liquied flow copper pipe heatsink cooling plate
Precision Copper Pipe Heat SInk
Large Image: Aluminum Fin Heat Sink with Copper Pipe
Materials: Pure Copper C1100 Strips, Purity over 99.5%
Depend on customer's requirements
395*395*10 mm Aluminum Powder Coated Cold Plate 99.5% LF Solar Panel Water Cooled Heat Sink 0

Description:

Bending,  cnc machining, welding, double cnc milling. Passivation.

Stamping, Automatic Tube Forming Machining,Overflow Welding/Drying Machine
Processing Technic:

1. Copper Fins: Progressive Die Stamping
2. Aluminum Board: Extrusion+ CNC Machining
3. Copper Tube Forming : Automatic Tube Bending+ Burn into Tip Ends.
4. Aluminum Board and Enclosure Nickle Plated, Copper Fin Passivate (Insulation,
Oxidation and Corrosion Resistance).
5. Assembly: Automatic Fin Wearing/Assembly, then Fixed by Overflow Soldering and
Screw/Rivet Combination.
6. Quality Check
7. Packing


Application: Projector, Computer, Server, Equipment


Specification:

Overall Dimension Fins: L80*W31
Aluminum Fin Thickness 0.4mm
Fin Quantity Per Row 26 pcs
Aluminum Block Size 95*60*12mm
Copper Tube 8mm in Dia.
Tube Quantity 3 pcs
Part Weight 330Gram
Material

Pure Copper C1100 Strips, Purity over 99.5% (Standard: JIS H3250-2006); Pure Aluminum Board A1060 Purity Over 99.6% .(Standard: GB/T3880-2006).
(Little Impurity brings very good Electrical and Heat Conduction; Excellent Performance In Corrosion Resistant as well.)




Our tubed water cold plates are cost-effective and offer good bulk heat removal for low-to-medium watt densities. Applications include IGBT modules, Lasers, Electric Vehicles, Industrial power converters, UPS, Medical appliance and so on. Water or water/glycol are the most common fluids used in liquid cooling, it can also be gasoline, oil, and refrigerant as other examples.



How to cooperate ?

Please provide as many details as possible to aid in the design of your cold plates and submit to our email. If the heat load is not uniformly distributed, please supply a thermal map depicting the location and wattage of the heat sources

  • Size: Length x Width x Height
  • Heat Load, Power Dissipation: Total Watts: , Watts/Side: , Top: , Bottom:
  • Coolant type:
  • Flow rate:
  • Inlet coolant temp:
  • Maximum cold plate temperature at device mounting surface:
  • Tube size:
  • Annual Requirements:


Advantages:

1. Professional Research and Design Team, Strong & Automatic Equipments: Progressive Stamping, Automatic Tube Bending Machine, Automatic Fin Wearing Machining
2. Strict Quality Control in Each Process and Finish Product Quality Control
3. Short Delivery Lead Time: 15-30 Days
4. Optional For OEM or ODM
5. Comprehensive After-Sale Service, Quick Responses For Daily Communication
