Product Details:

Place of Origin: Guangdong, Mainland China
Brand Name: LF
Certification: ISO9001:2008, TS16949
Model Number: LF-DJ0175

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Negotiable
Packaging Details: Part in Bubble Bag, then in Cartons, Wooden Pallet on Bottom, Film wrapped overall then Nylon belt fastened Or to be Customized Means of Packing.
Delivery Time: MOQ 2 Weeks, 10,000pcs+ : 4 Weeks.
Payment Terms: TT, L/C, D/A, L/C, Western Union, MoneyGram
Supply Ability: 30,000 PCS Per Month
Get Best Price Contact Now

Detail Information

Material: ADC12, A380, Zinc Processing: Die Casting
Finishing: Black Anodizing Dimension: 230*223*70MM
Color: Black Place Of Original: GuangDong, China
Heat Dissipation: 250 W

Product Description

Aluminium /Zinc alloy Die Casting Processing Die Cast Bell Housing Clock Base Plate

Aluminium /Zinc alloy Die Casting Processing Die Cast Bell Housing Clock Base Plate





Quick Details:



Precision Aluminum die casting & Aluminum casting

Large Image: Stage Led Housing

Surface Treatment: Powder Coating

Depend on customer's requirements



Description:



Product Name
Casting Aluminum Industrial Small Engine Coupling Bell Housing
Main blank Process
Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting,
High Pressure Casting/Sand Casting, etc.
Blanks Tolerance -Casting Tolerance
CT4-6 for Permanent Molding, Die Casting. CT 9-11 for Sand Casting
Applicable Material for Aluminum casting
A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2, Or according to customer requirements
Casting Blank Size /Dimensions
2 mm-1500mm / 0.08inch-60inch , or according to customer requirements
Applicable Machining Process
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance
From 0.005mm-0.01mm-0.1mm
Machined Surface Quality
Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment
T5~T6
Applicable Finish Surface Treatment
Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating,
Finish Painting, Anodize (White or Black Color), as customers request.
Lead Time
About 50 days for coupling bell housing

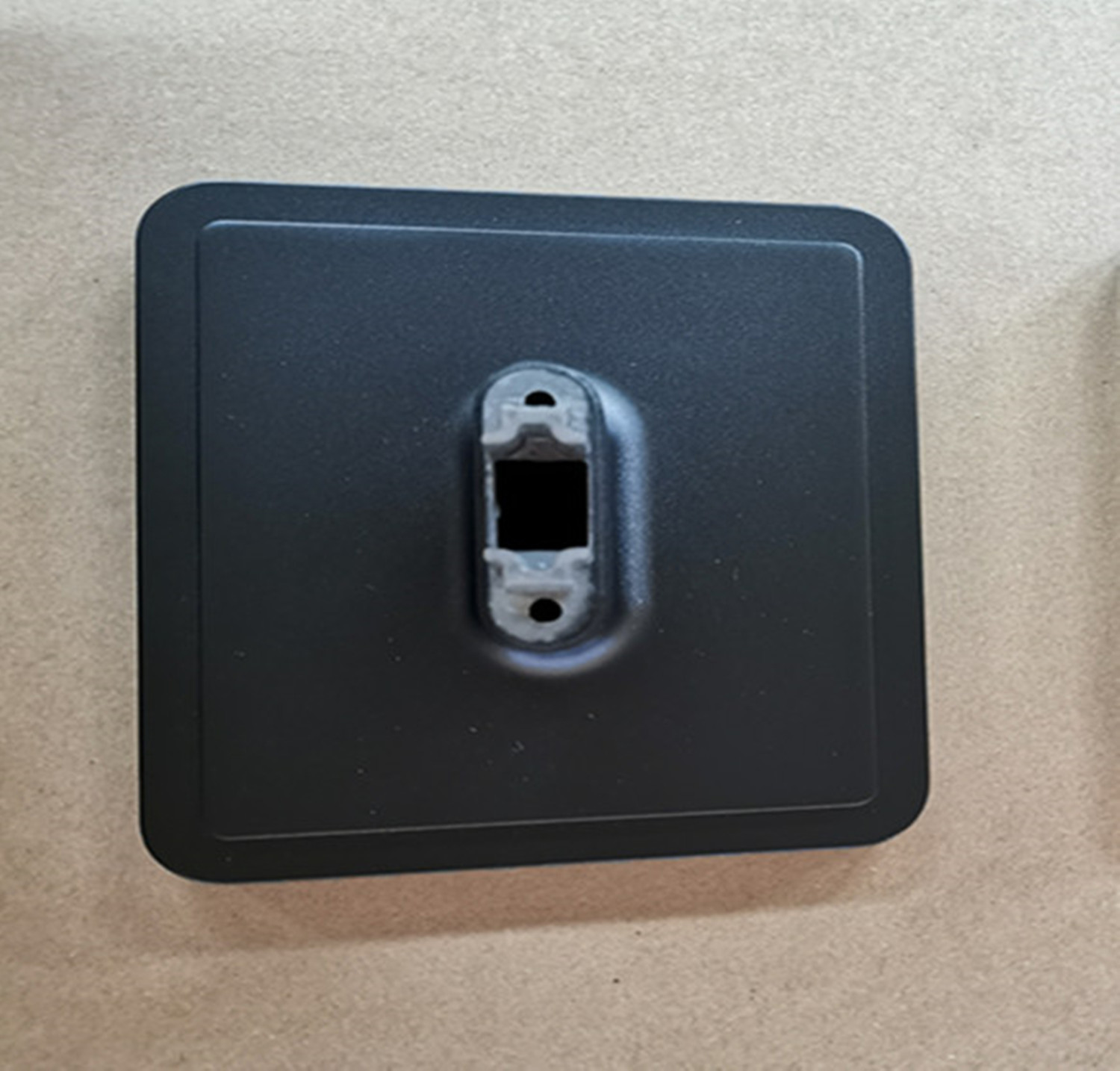

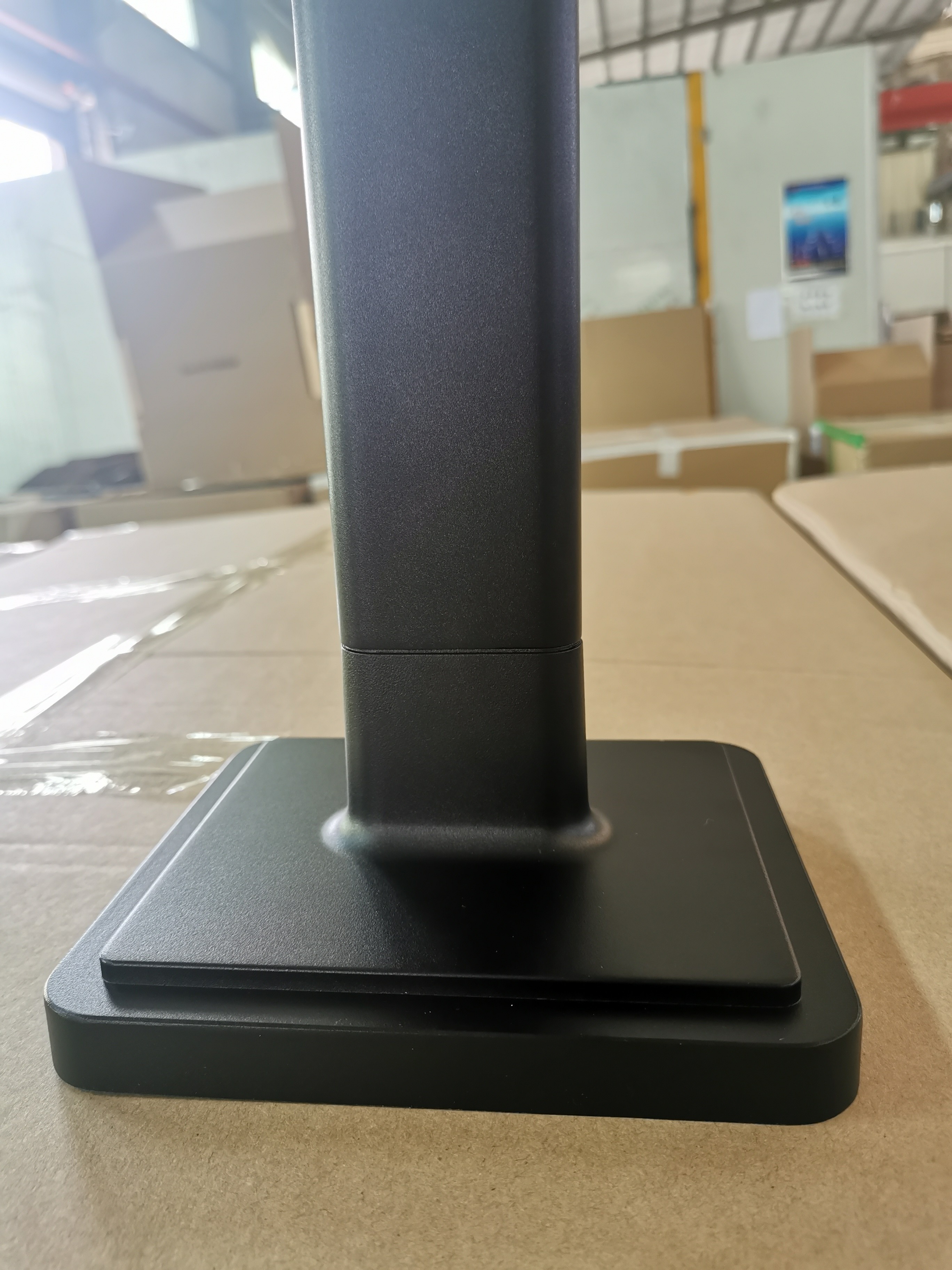

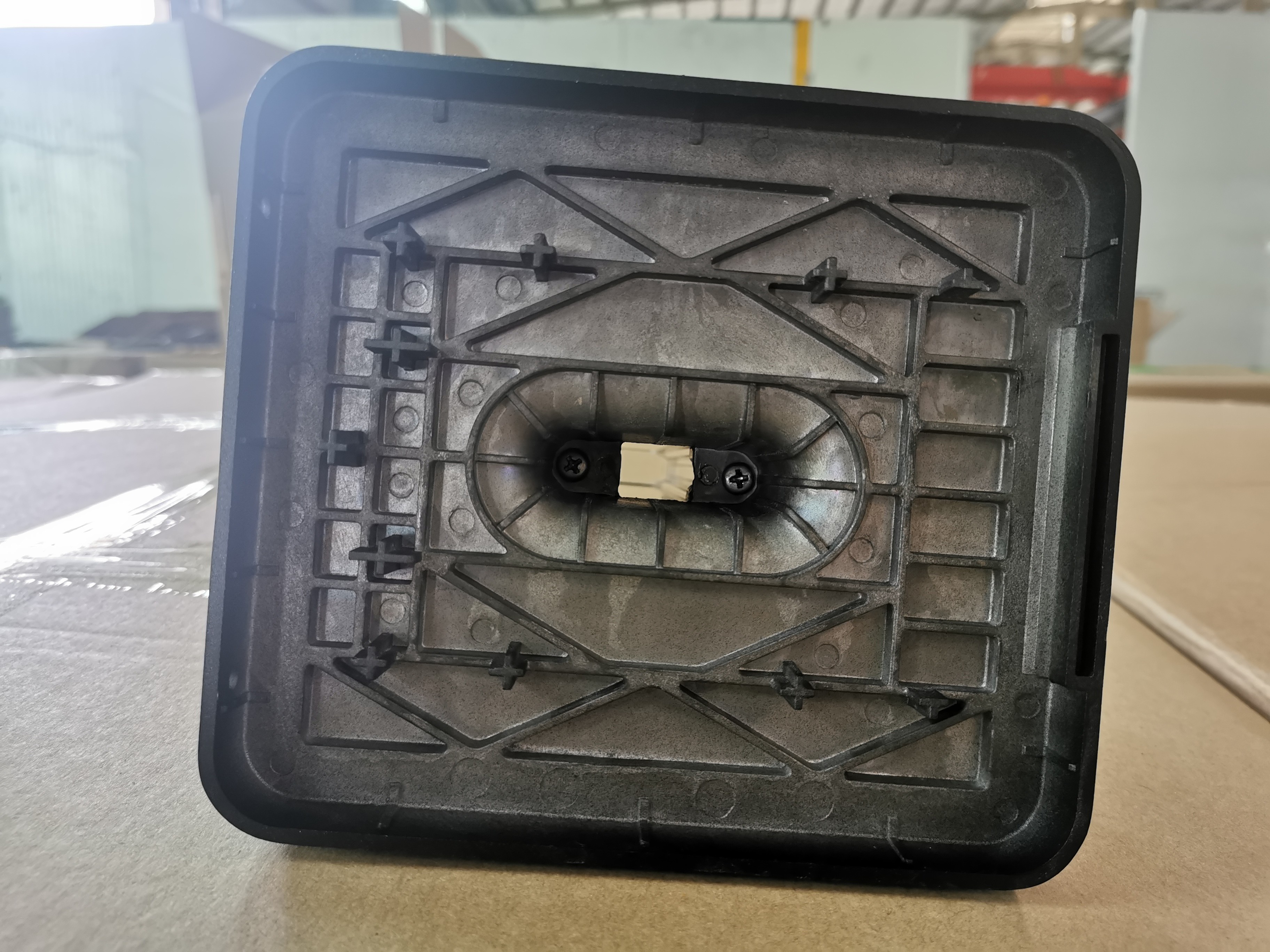

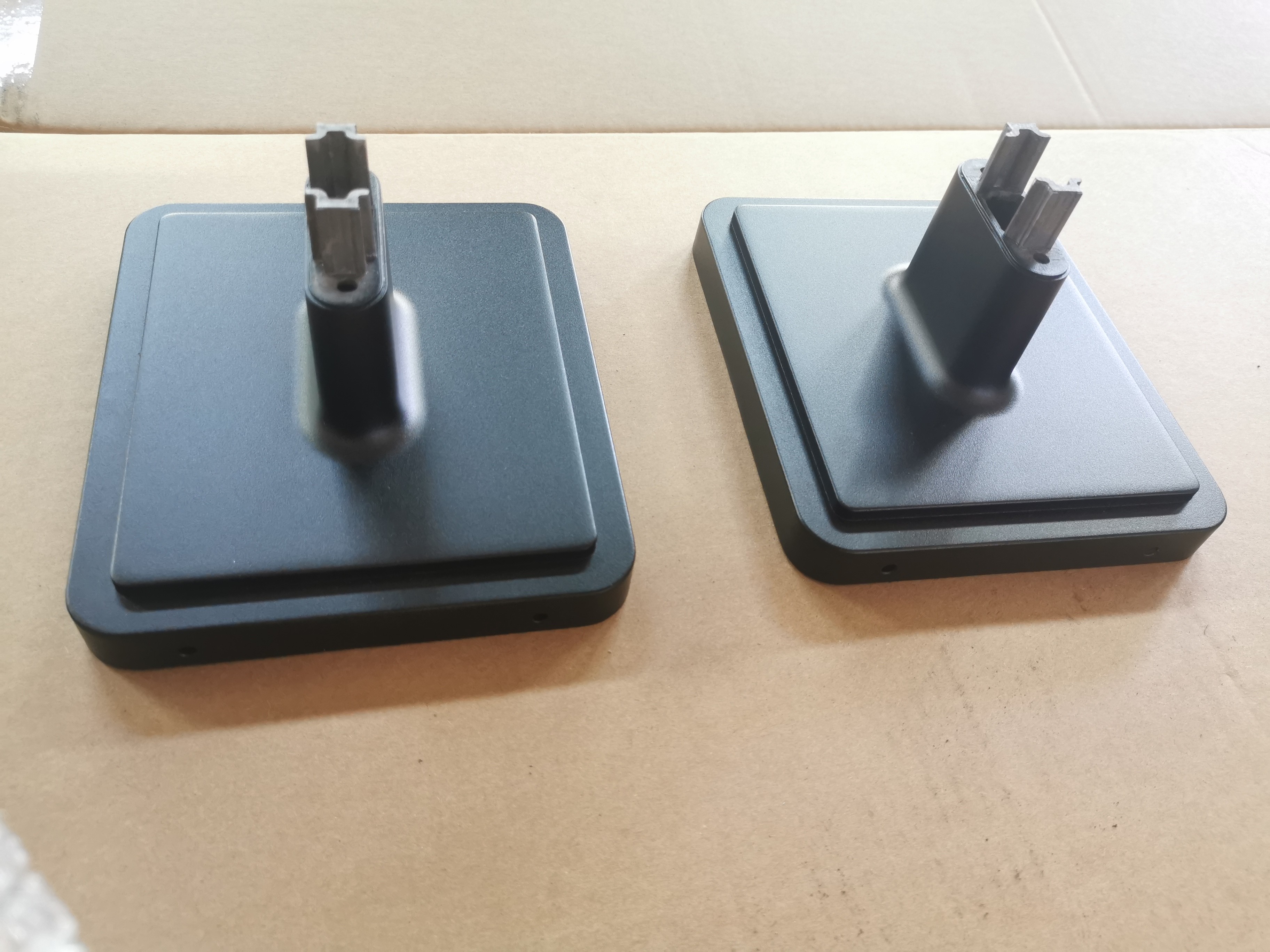

Large Image:  Aluminum Housing For Ring Bell Housing Base Plate





Aluminium /Zinc alloy Die Casting Processing Die Cast Bell Housing Clock Base Plate 0

Aluminium /Zinc alloy Die Casting Processing Die Cast Bell Housing Clock Base Plate 1

Application:



Sea motor housing, LED Light in Marine, Mining.





Specification:



Overall Dimension L230*W226*H70mm
Surface Treatment Anodizing
Part Weight  3.6 kgs
Material A380 (Standard: ASTM B 85-03 Standard )





Processing Technic:



1. Die Casting Tooling Making--Prototype/T1--Dimension Check-- Sample Approval-- SOP

2. Die Casting-- Remove Water Gap--Deburring-- Machining--Drilling Holes/ Threading--  Quality Check (dimension and surface) --Powder Coating--QC (Surface Vision Checking)-- Packing

High Quality Outside Usage Powder Coating surface makes very good performance in Oxidation Resistance And Corrosion Resistance.





Advantages:



1. Professional Research and Design Team (20 Persons),  Possess All Necessary Equipments.

2. Strict Quality Control in Each Process and Finish Product Quality Control

3. Short Delivery Lead Time: 15-30 Days

4. Optional For OEM or ODM

5. Comprehensive After-Sale Service, Quick Responses For Daily CommunicationLarge Image:  Aluminum Led Housing For Mine



Why us?



We are a company who makes aluminum fixtures and enclosures over 15 years, Including Die casting, CNC machining, Stamping...

We have our own engineer to check the cost in the cheapest way. One of our business philosophy is “Provide our customers quality products with the most competitive prices.” We have experience in providing enclosures for Huawei, IBM etc.

If you are possible to offer us a sample or the product drawings, possible buying quantity. We will give you our cost evaluation within one working day.
