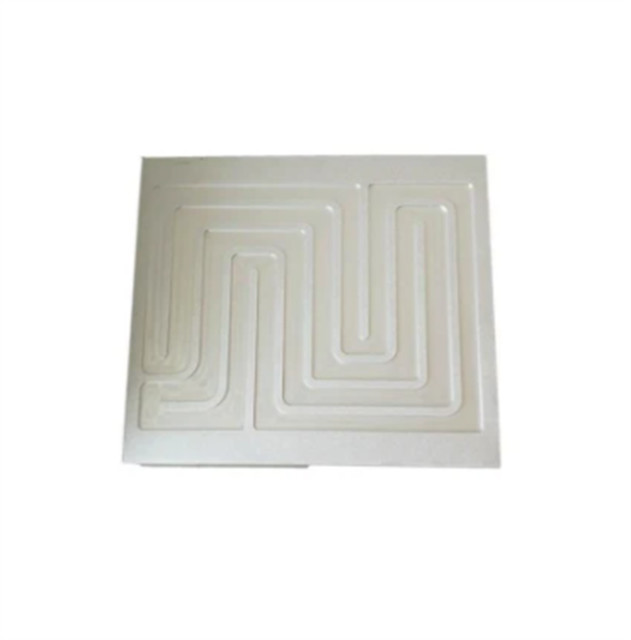

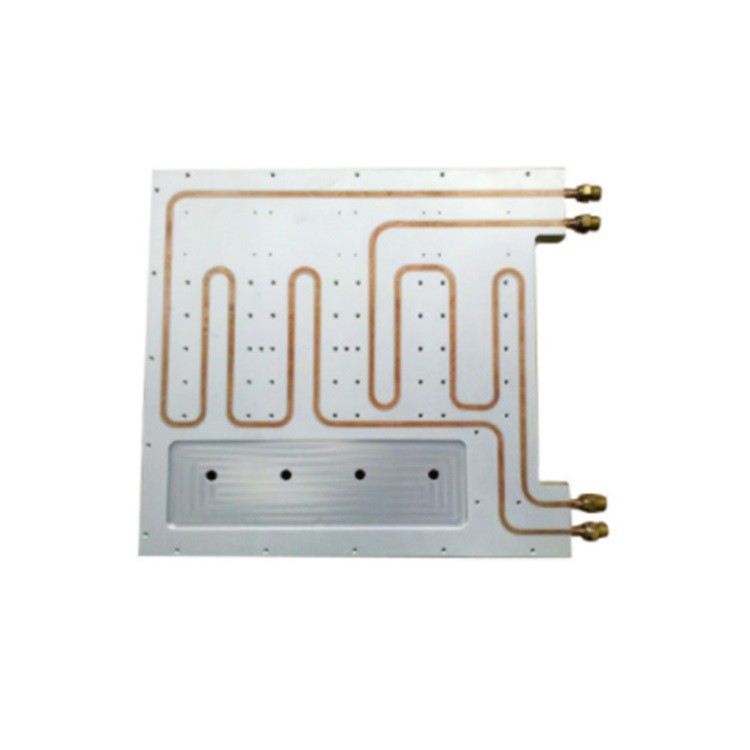

ISO9001 Certified Aluminum Liquid Cold Plate For Cooling System

Place of Origin Guangdong, Mainland China
Brand Name LF
Certification ISO9001:2008, TS16949
Model Number LF-LX0503
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details Part in Plastic Tray, then in Cartons, Wooden Pallet on Bottom, Film wrapped overall then Nylon belt fastened Or to be Customized Means of Packing.
Delivery Time MOQ 2 Weeks, 10,000pcs+ : 4 Weeks.
Payment Terms TT, L/C
Supply Ability 20,000 PCS Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Type Liquid Cold Plates Plate Material Aluminum Alloy
Tube Material Copper, Aluminum, Or Stainless Steel Shapes Based On Your Requirements
Certificate CE/SGS/ISO/Rohs Service Free Sample, Free Design
High Light

ISO9001 Liquid Cold Plate

,

IGBT Liquid Cold Plate

,

Rectifier Liquid Cooling Plate

Leave a Message
Product Description

Liquid Cold Plates

Formal Metal has been striving for 8 years in providing good quality liquid cold plates. All guaranteed fast and friendly customer support. Heatell is capable to be your great supporter and help you boost your brand market.

Formal Metal has produces the widest range of liquid cold plate fabrication and design in the thermal management industry.

Our global capabilities allow us to produce and develop quality liquid cold plates with more efficient and compact cooling. Heatell liquid cold plate is the best solution for high heat loads while reducing costs and maintaining design flexibility.

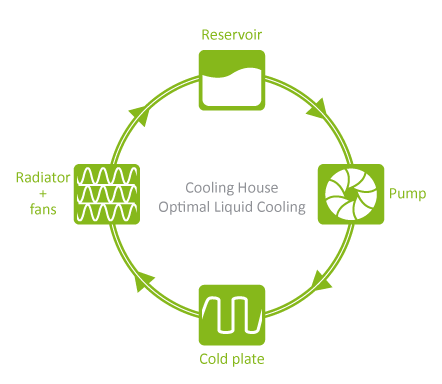

For high power density applications, conventional air-cooling system may not be sufficient to maintain heat sources under safe operating temperature, the liquid cooling system with high heat transfer capability shall be then considered. A complete liquid cooling system contains several important components underneath: a cold plate, a radiator, a fan, and a reservoir.
The heat source(s) is attached to cold plate made of Aluminum or Copper to remove heat energy, where cool water flows into the cold plate and leaves it with heat through the pipeline to the condenser, then dissipates heat to the ambient. The liquid is returned to the reservoir after heat exchange via the pipeline, and then is pumped to cold plate for next cycles.
Pipe and arrangement may vary according to system space, and we strongly recommend to allocate reservoir in front of pump for maximum and stable flow. Working fluid of liquid cooling system also acts as lubrication to protect pump from over heating, stable liquid flow into pump is great helpful to it’s life and thus system reliability.

Optimal-Liquid-Cooling

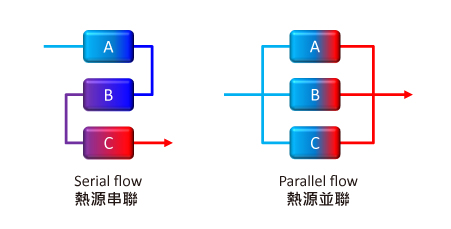

For the simplicity of flow arrangement, a serial configuration is adapted more common in practice. Illustration below comparing a serial configuration to a parallel configuration for 3 cold plates (heat sources).

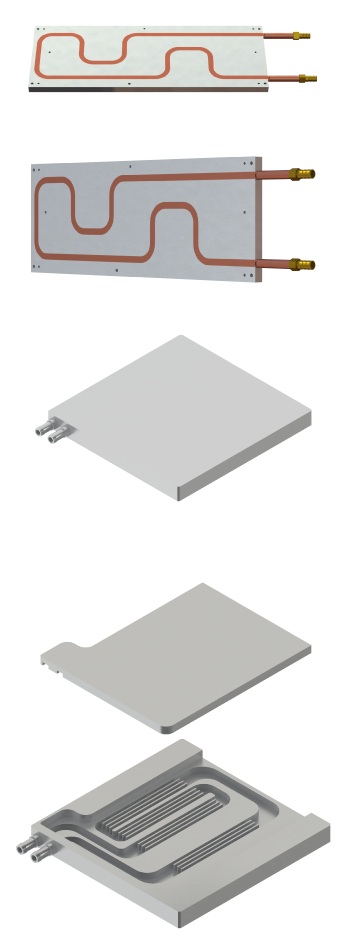

Liquid-cooling-cold-plate-2

The advantages of liquid cooling is that the specific heat and heat transfer coefficient of the liquid is massively higher than air, thus the efficiency is much higher than the conventional air cooling.

To illustrate the this, image sitting by the pool in 20 °C with short-sleeved, which is comfortable and pleasant; if you jump in the pool also at 20 °C, you feel much colder and have to swim intensely to keep warm. This is because water is a much more effective conductor than air, and it takes more heat immediately from the body than staying in the air.

Liquid cooling key advantages:

  • High heat convection coefficient(h)Air 1~1,000 (W/m² K) Water and liquids 50~10,000 (W/m² K)
  • With pumping and routing design the system is more scalable
  • Capable to high power and high heat flux

The development and progress of various industries mostly with of system power and performance increase. The performance of water cooling system is superior to air cooling system, however it is also more complicated to do the design It is often used in power electronics, laser systems and medical systems.
There are several aspects and parameters to be balanced when developing a water cooling system. Engineers need to minimize development and manufacturing costs while meeting the thermal target:

  • Thermal performance
  • Heat exchange area and pressure drop
  • Pipeline distribution, pump load and capacity/li>
  • Flow volume distribution and stability
  • Weight/size

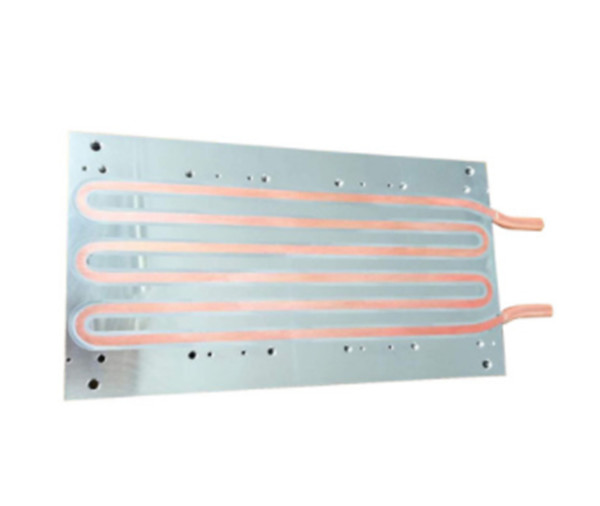

ISO9001 Certified Aluminum Liquid Cold Plate For Cooling System 2

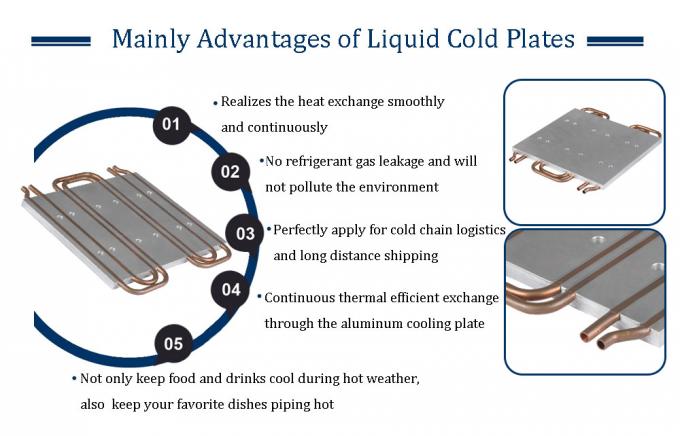

liquid cold plates advantageLiquid Cold Plates

Item Type Liquid Cold Plates
Plate material Aluminum alloy
Tube material Copper, aluminum, or stainless steel
Shapes Based on your requirements.
Production Process Aluminum plate cutting—CNC Grooves making—Embedding Tubes (Friction stir welding, Vacuum brazing)—Epoxy adhesive filling—CNC machining—Cleaning—Inspecting—Packing
Technical extrusion, skived fin, stamping, cold forging, bonded fin, die-cast, liquid cold plates, folded fin
Application Inverter, Inverter, Power, IGBT, Rectifier, LED Lighting, Welding Machine, Communication Equipment, Electronics Industry,
Solid State Relay, Controller, Electromagnetic Heating
Finish Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF etc.
Deep process CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication
MOQ Low MOQ
Packaging standard export packaging or as discussed
Certificate CE/SGS/ISO/Rohs
Service 1. Free sample, Free design;
2. OEM/ODM available;
3. Custom-made request;
4. New design solution suggestion
Delivery time 15-20 days after sample confirmed & down payment, or negotiated
Port Shanghai Port
Our Advantage superior quality with competitive price, Certified enterprises in China

Liquid Cooled Heat Sink

Liquid Cooled Heat Sink

Our liquid cold plate is flawlessly manufactured in our state-of-the-art brazing technology. You are guaranteed airtightness liquid cold plates with no water leak.

We produce custom liquid cold plates that can also save your tooling costs. Ask for a quote today!
